Name: Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Maison > produits > Probes d'essai au ressort >

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Gold Plated Spring Test Probe

Brass Barrel Pogo Pin

0.5amps Current Rating ICT Test Probe

Lieu d'origine:

Chine

Nom de marque:

WINNER

Certification:

ISO9100

Contactez-nous

Demandez une citation

Détails de produit

Nom du produit:

sonde de test de taille standard

Piston:

BeCu/SK4, plaqué or

baril:

Bronze , Doré

Printemps:

SWP, Au sur Ni palted

Disponibilité:

Tailles personnalisées disponibles

Revêtement:

Plaqué or

MOQ:

3000pcs

Récipient:

Or en laiton plaqué

Note actuelle:

0.5 ampères

Résistance aux contacts:

50 millions d'hms maximum

Coup complet:

1.50mm

Traction nominale:

1,00 mm

Force de ressort:

1,0/2,0/3,0N

CEM1:

0,40 mm (0,0,67)

FR4:

0,40 mm (0,0,69)

Standard:

-40℃-+80℃

Conception spéciale "C":

-100 ℃-+200 ℃

Mettre en évidence:

Gold Plated Spring Test Probe

Brass Barrel Pogo Pin

0.5amps Current Rating ICT Test Probe

Conditions de paiement et d'expédition

Quantité de commande min

3000pcs

Prix

999

Détails d'emballage

Emballage neutre ou avec un logo OEM

Délai de livraison

5-8 jours ouvrables

Conditions de paiement

LC, Western Union, T/T

Capacité d'approvisionnement

100000 rouleaux par mois

Produits connexes

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Obtenez le meilleur prix

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Obtenez le meilleur prix

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Obtenez le meilleur prix

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description de produit

Spring Contact Probe Spring Test Probe P075

Product Description

Customized Brass Barrel Stainless Steel Spring Test Probe P075 for In-Circuit-Test (ICT)

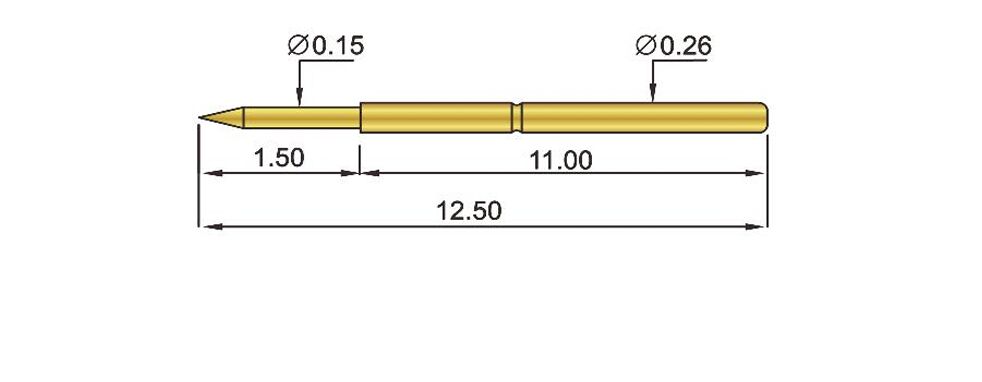

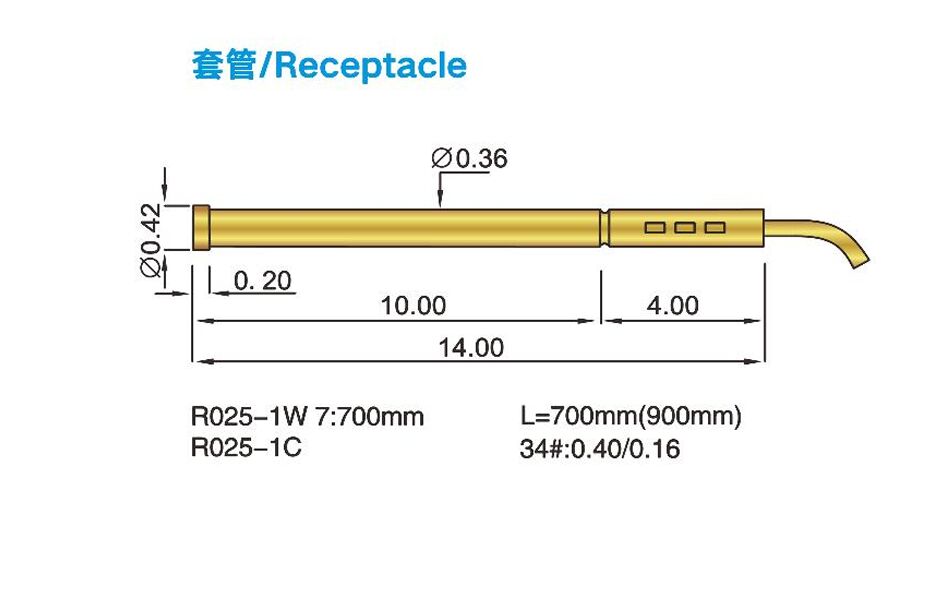

Production Specifications

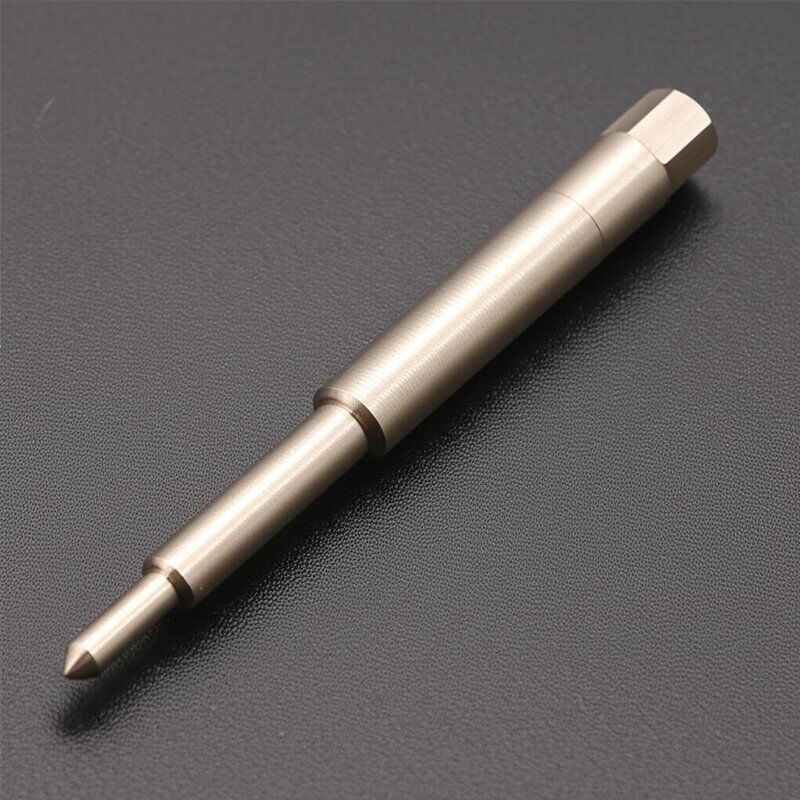

Product Images

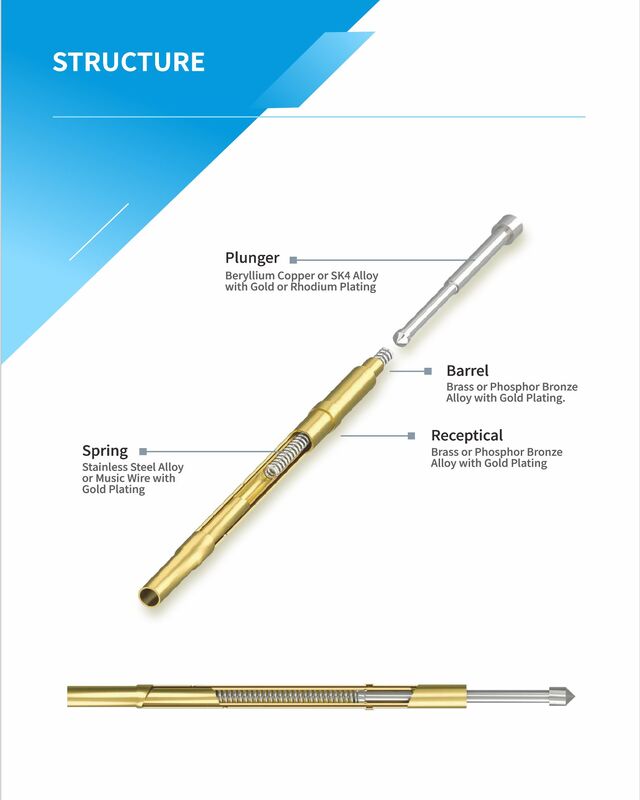

Detailed Component Illustration

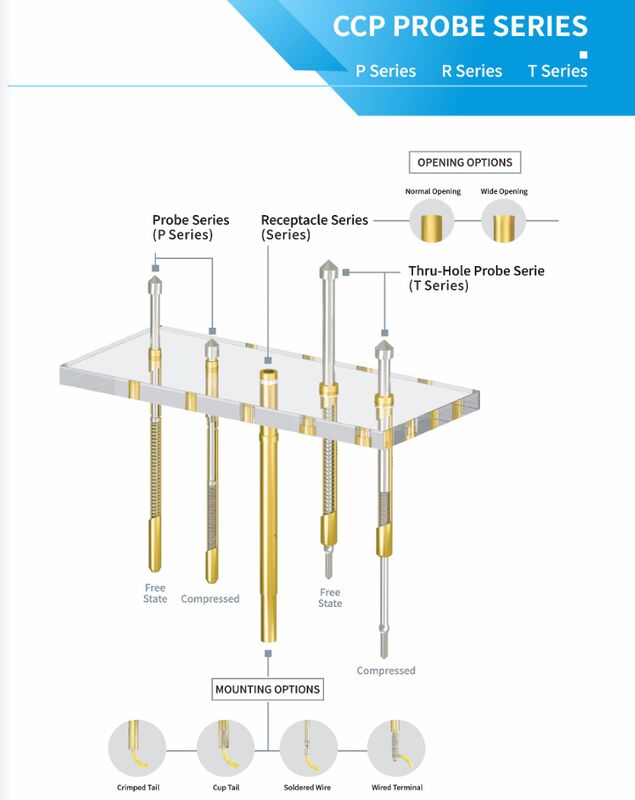

Comparison of different test probe tip types and configurations

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
